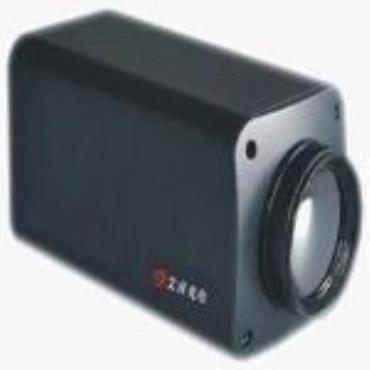

SZ301 is an indispensable tool for security monitoring which is with versatile functions. Equipped with new generation detector, together with high NETD and resolution, it is delivers definition images. It is easy to integrate for ground /sea systems. Due to the rugged, sealed, waterproof, dustproof, shockproof design, SZ301 with high performance in total darkness and any harsh environments

Imager Performance

Detector Materials Uncooled FPA

Pixel Size 320×240

Spectral Range 8μm～14μm

NETD ≤45 mK (F/0.7)

FOV 22.8o×17.4o ~ 13.8o ×10.4o

Frame Frequency 25Hz

Imager Presentation

Electronic Zoom ×2

?Brightness & Contrast Manual / Auto

Offset & Gain Control Automatic

Polarity B&W

Cursor customized

Interfaces

Analog Video NTSC/PAL

Command Interface Ethernet 2.0/RS422/RS232/RS485

Environmental

Operating Temperature -40℃～+65℃
