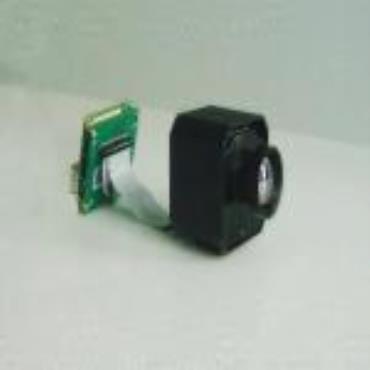

SZ003 is the most unique IR thermal core which integrates temperature measurement system into front-end. Compact, rugged and low power consumption, combined with advanced image processing and rich interfaces, SZ003 guarantees high definition thermal image in harsh conditions. It is the best choice for second development and system integration.

Detector

Detector Materials Uncooled FPA

Pixel Size 320×240/384×288/640×480

Spectral Range 8μm～14μm

NETD ≤45 mK (F/0.7)

Frame Rate 25Hz

AD Sample 14Bit

Non-uniformity ≤ 0.1%

False Data of Pixel ≤ 0.25%

Starting Time ≤20s

Imager Presentation

Video Output PAL/NTSC

Electronic Zoom ×2

Frame Frequency 25Hz

Environmental Parameters

Operating Temperature -20℃～+65℃

Power System

Voltage DC, 5～24V

Power Dissipation ≤2.5W
