Balun is a passive electronic device that converts between balanced and unbalanced electrical signals.

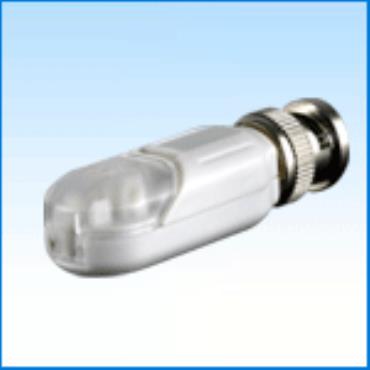

The CCTV Video Balun with Flip-Top IDC Connector requires no AC power or batteries for bi-directional signal conversion, and it is designed to terminate wires by hands, without punch-down tool for efficient and friendly installation. Our CCTV Balun is used in pairs to allow traditional 75 ohm coax cable to be replaced by Category 5 (or better) twisted pair LAN cable in the CCTV security and surveillance environment. Thereby, it allows CCTV camera and monitoring equipment to be deployed more cost-effective, better image, and much longer distance using balanced cabling techniques. For multiple camera installations savings of over 50% can be made. All our Baluns are 100% tested for reliability and durability to guarantee your signal integrity.

The CCTV balun works with any analogue baseband video equipment that supports NTSC, PAL or SECAM systems; CCTV cameras, video multiplexers, video switchers, monitors, scan converters, signal boosters.

Toolless make things easier for you !!!

〈 Allows maximum distance of color video upto 2200 ft (671m) of Cat.5 UTP cable.

〈 Easy and fast installation

〈 Includes surge protection

〈 Converts Bi-directional signal

〈 Compact enclosure

〈 Support NTSC, PAL, and SECAM systems

〈 Limited Lifetime warranty

〈 Size: 54.6mm(L) x 17mm(W)x 14.6mm(H)
