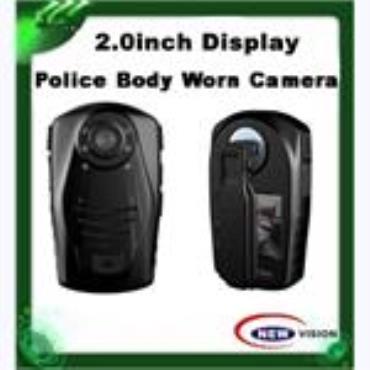

1. Highest 1080P High Resolution H.264 recording in the industry

2. Built in digital camera that can take up to 8 Megapixel photo

3. Can take digital photos

4. Color Video & Audio, Solo Audio Recording

5. Night vision that can see up to 10M

6.2inch TFT LCD screen with playback

7. Can be integrated with you 2 ways audio

8. Temperature proof, waterproof, shock proof, anti-fog

9. Built in rechargeable battery can last up to 12hours

10. Unique ID number per unit, Supervisor password protect

Item Specification

Camera Built in ,angle adjustable ,waterproof,shockproof,anti-fog

Megapixel 8 Megapixel

Lens Horizontal angle：90degree or 120degree customs,5 Glass coating lens

IR-CUT IR-CUT auto switch day and night model，auto switch according to light change ,don’t get partial color video during day and night

Photo resolution 4000*3000 JPEG

Zoom Digital zoom

Video resolution 1080P,720P,D1

Recording Speed 15,25,30,60f/s

Recording format H.264

Sound pick-up High sensitivity,anti-noise, SNR,Omni -bearing pickup sound （SNR:60dB,Sensitivity:54dB, response frequency:100-12500 Hz）

Display Screen 2inch color LCD screen with protection glass ,Resolution: 640X240

IR LED light 4IR light,14mil chip angle:90degree,wavelength: 850nm , light spectrum banwidth:45nm,under full dark circumstance, effective distance:10M

Illumination LED 1pcs LED 10Lm

Focus Rang 0.5 M -∞

Working illumination ≥0.1LUX　

Boot time ≥3seconds

Standby-time 12 hours

Record time 7 hours

Storage 8G,16G,32G

Battery 3.7V 3000mAH lithium polymer

Data interface USB2.0,charge ,transmission data:4M/S

Working temperature -30degree ~ 60degree , 25degree: work time:7hours

Clip Metal clip mount

Wear mode Shoulder wear

Vehicle working mode Car charger

Camera Demission 96×55×30

Camera Weight 150g

Waterproof IPX54

External battery 4800 mAH li-ion battery polymer ,work up to 14hours

Drop test 1.5 M

Operation mode Multi-functional one key operation

Charge USB charge ,car charge

Housing material PC engineering plastics ,thermostability:125degree, low temperature resistant:-40degree,with self-extinguish, antifoaming, on-poisonous

Intercom interface Compatible with market intercom

Box size 125x85x160mm

G.W 0.5KG

GPS expand Real-time position police officer location and walk route，software also view and later with video playback synchronous playback tracks at any time

3G expand Real-time wireless audio and video transmission ,delay time no more than 3 seconds, 3 g digital intercom function
