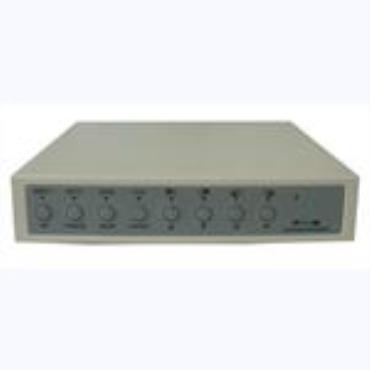

4ch video quad /4ch color quad /4ch video quad processor Model :XS-402

Video Standard NTSC 60 fields/sec + PAL 50 fields/sec

Video Resolution ? NTSC:720*480 pixels

* PAL:720*576 pixels

Video Inputs 4/8 x BNC channels 1.0Vp-p composite 75 ohms

VCR Input 1 x BNC channels 1.0Vp-p composite 75 ohms

Video Outputs 2 x BNC channels 1.0Vp-p composite 75 ohms

Display Modes  Quad screen

* PIP screen with one overlay channel

* PIP screen with dual overlay channels

* POP Dual-channel split screen

* Full screen for single channel

* Auto channel sequence switching

* Zoom

* Freeze

Ambient Temperature -30degree ~ 60degree

Power Supply ? AC Input: 100-240V 50/60Hz

* DC Output: 12V, 1A

Dimension 22(W) x 21(D) x 5 (H)CM

G.W 1KG
