> H.264 video compression algorithm ideal

> compact size(the car CD machine standard size) and standard car electronic interface, easy for embedded installation

> Multi-information display and recording: Car Number, Time, Channel, , Speed, and Station name information, support freely setting of overlay and recording

> Support wide voltage car power supply input(8~60V), protection of overvoltage, under-voltage, short circuit and over-current

> Air connector interface used, provide excellent waterproof, shockproof performance

> Pluggable SD-case used, provide powerful vibration-proof capability

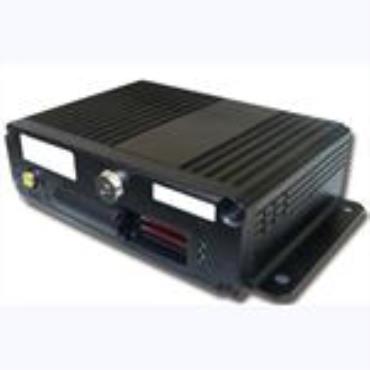

Model XS-DVR-D1 XS-DVR-D2

System

Main Processor High performance embedded microprocessor

Operating System Embedded LINUX

System Resources Pentaplex function: live, recording, playback, backup

Control Mode USB mouse, IR remote control

Video

Input 4 channel, Air connector to BNC(1.0Vp-p, 75Ω)

Standard NTSC(525Line, 60f/s), PAL(625Line, 50f/s)

Output 1 TV, Air connector to BNC(1.0Vp-p, 75Ω), 1 VGA(RJ45 port extension)

Audio

Input 4 channel, Air connector to BNC(200-2800mV, 30KΩ)

Output 1 channel, Air connector to BNC(200-3000mV, 5KΩ)

Display

Display Split 1/4

Recording

Video/Audio Compression H.264 / PCM

Image Resolution D1/4CIF(704×576/704×480) / HD1(352×576/352×480) / 2CIF(704×288/704×240) / CIF(352×288/352×240) /

Bit Rate 32~2048Kb/s

Image Quality 1~6 level(level 6 is the best, VBR effectively)

Recording Mode Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop

Recording Priority Manual >Alarm >MD >Regular

Recording Interval 1~120 min. (default: 60 min.), Pre-record: 1~30 sec., Post-record: 10~300 sec.

Playback & Backup

Playback Channel 1/2/4

Search Mode Time/Date, Alarm, Motion Detection & Exact search (accurate to second)

Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom(any size)

Backup Mode SD card

Hard Disk

SD Card 1 or 2 SD card supported

Space Occupation Audio: 28.8MB/H, Video: 56~900MB/H

Environmental

Power Supply +12V / +24V / +42V(+8V~+60V)

Power Consumption Alarm >MD >Regular

Recording Interval 1~120 min. (default: 60 min.), Pre-record: 1~30 sec., Post-record: 10~300 sec.

Playback & Backup

Playback Channel 1/2/4

Search Mode Time/Date, Alarm, Exact search (accurate to second)

Backup Mode SD card

Hard Disk

SD Card 1or 2 pcs SD card supported

Space Occupation Audio: 28.8MB/H, Video: 56~900MB/H

Environmental

Power Supply +12V / +24V / +42V(+8V~+60V)

Power Consumption <15W(with HDD)

Working Environment 0℃~+55℃ / 10%~95%RH / 86~106kpa

Dimension 170mm×110mm×45mm(W×D×H)

Weight 1KG(with HDD)
