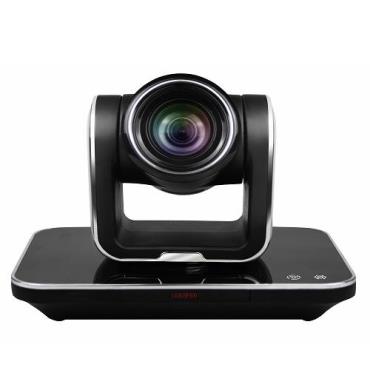

PUS-HD320S is a classic product of PUAS Company. with advanced video image processing technology and full HD CMOS Image Sensor, output of multiple video formats, the maximum resolution is 1080P60FPS; 3 million extreme picture presentation, color true, image quality Clear; support USB local storage function, one-click recording and 3G-SDI\HDMI\IP Streaming video simultaneous output. H.264/H.265 super decoding, 1080P low bandwidth transmission demand; built-in audio interface, suitable for high frequency sound live broadcast and AV video recording. Support VISCA / PELCO P / D, ONVIF multiple protocols & application widely, suitable for LIVE Streaming & Broadcasting, Conferencing, Education, Telemedicine, AV Media Solution project.

Function

● Built-in VISCA, PELCO P/D, ONVIF multiple protocols.

● 3G-SDI / HDMI / IP Streaming (RTSP, RTMP) video simultaneous output.● Support RS485 / RS232 / LAN(RJ45 Port) communication interface.

● The PTZ fuselage adopts Over-new OLED touch panel display design, intelligently to changed the address, protocol, Resolution.

● Ultra-quiet P/T design, horizontal 356 degrees, vertical 120°rotation.● All-aluminum compact structure design, imported high precision Stepper motor drive, accuracy 0.01°.

● Built-in 3.5mm Jack audio input interface WITH ACC Encoding

● Support USB2.0 Port Local Storage & recording.

● Excellent Smart Menu and IP address display, which can adjustable camera parameters & setting.

● Support 2D/3D noise reduction function.

● Video output format support 1080P60/50/30/25,1080I60/50/30/25/720p/60/50

● Image Mirror & flip is available

● support wall mount, ceiling, desktop, tripod installation.

● Automatic gain control (AGC) Improved noise reduction Accoustic Echo Cancellation (AEC)

Specification

1/2.8″ Exmor CMOS Sensor

3.27 Megapixel

1080P60/50/30/25,1080I60/50/30/25/720p/60/50

20X Optical, 12X Digital Zoom

Lens: f=4.7mm-94.0mm, F=1.6(W)-3.5(T)

Horizontal Field of View 2.9°(T)-65°(W)

Min Lux 0.5lux /0.095 lux

Shutter Speed 1 to 1/10000s

Vertical Flip & Mirror Supported

HDMI, SDI, IP Streaming( RTSP/RTMP)

RS485/RS232/RJ45

Horizontal Rotation 356°

Vertical Rotation 120°

H.264/H.265/MJPEG

Warranty

3-Years
