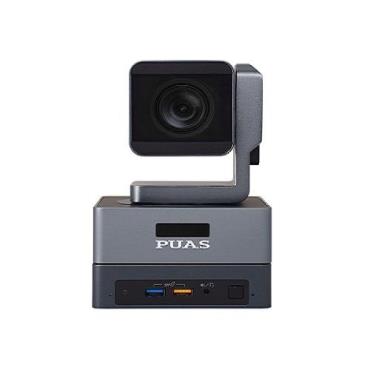

PUS-TE21X3-KIT is a software video conferencing suite or audio and video kit for collaborative & Conferencing AV system

It has built-in Windows Operation System with10X 1080P wide-angle lens. the kits including an omnidirectional Wireless USB microphone. which can be collected voice at a distance of 3 meters.It can compatible with Skype for business,Cisco WebEx,Zoom etc APKs or video conferencing software,and is the best choice for software video conferencing solution without PC

• Suitable for meeting room size up to 20~30 square meters

• Support for on-site meetings of up to 10 people

• 1/2.8-inch 2.07 Megapixel high-quality image sensor with 1080P@30fps

• 87° super wide-angle Fixed Len, No distortion or 72°Horonzital of view 10X Optical Zoom

• Ultra-quiet pan/tilt design, horizontal 178°,vertical -30°~ +90°rotation

• Over-New Mini compact structure, direct driven by imported high-precision stepper motor, accuracy less than 0.01°

• Video output supports up to 1080P@30fps

• The terminal supports audio input and output; supports 1x HDMI2.0 Video output & 1x Rj45 LAN interface tramsimission; 4-way USB interface; integrates Bluetooth and integrates WiFi function, realizes integration of camera and conference terminal platform.

• Equipped with 8th generation Intel Core i3-8109U processor, support dual channel SODIMMs 1.2V, notebook DDR4-2400 memory, up to 32GB• Supports Intel® Dual Band Wireless-AC 9560,802.11ac,Dual Band,2x2 Wi-Fi + Bluetooth 5

• Supports 4x USB3.0 interface ( Mouse, Keyboard, Microphone & Speaker etc USB Device)

• Support Micro SDXC Slot & 32 GB maximum total system memory (with 8 Gb memory technology)

• Supports 4 Gb and 8Gb memory technology(SDRAM density)

• Video Output HDMI 2.0a Interface

• Suspend to RAM support & Wake on PCI Express,LAN,front panel,CIR,and USB ports

• Support 2D/3D noise reduction function

• H.265/H.264 video compression

• Support ceiling, wall mount, tripod multiple installation of methods

Audio (Wireless Microphone & Speaker

Deep Echo Cancellation

Dynamic Noise Suppression

Automatic Gain Control

Input/Output

Micro USB interface to PC OR USB Hub Device

3.5mm Jack Analog Line In/Out,Mobile,PC,Conferencing Interface

3.5mm Earphone or Extend

Micro 5Pin USB Interface

Built-in Battery( Max support 4Hours)

Microphone Frequency : 100Hz-22KHz

Speaker Frequency: 100Hz-22KHz

Speaker Volume: 85dB

Microphone Coverge : 3Meters

Key Button function

Power On/OFF

Phone Pickup /Hang off

Voice Increase / Reduce /Mute

Warranty

3-Years
