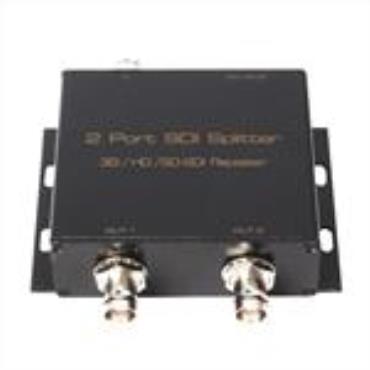

One Signal distribute to two SDI signal out.

Support SD-SDI, HD-SDI and 3G-SDI Video Format.

SDI Supports1080P/1080I/720P/576I/ 480I Video

Resolution.

Support SDI transmission Speed: SD-SDI:270MbPs

、HD-SDI:1.485GbPs and 3G-SDI: 2.97GbPs.

Supported Max Cable Length（SYV-75-5）:SD supports

up to 400m，HD supports up to 200m, 3G supports up

to 80～100m(Note: The cable length will depend on

the cable spec)

Support deep color 8bit, 10bit, 12bit

Support up to 3G-SDI

Audio and Video Output Simultaneously

Support Clock Recovery

No Any Drive Need, Support Hot-Plug, Plug and Play

Wide voltage input, It can support DC 5V~ 12V input
