SDI & Data Fver Fiber Multiplexers

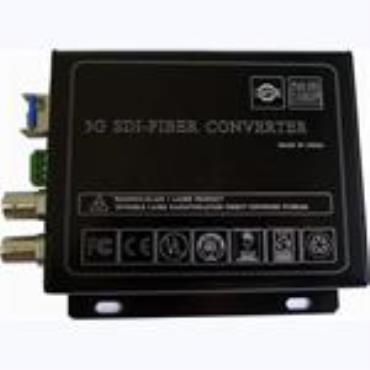

The SDI TO fiber converter is an ideal and economic solution for broadcasting or surveillance applications. It receives one HD-SDI electrical input, perfectly converts electrical SDI signal to single mode optic SDI signal. It supports transmission image of SDTV (143-540Mbps), HDTV (1.485Gbps) and HDTV (3Gbps, 1080p60).

Both transmitter and receiver provide equalizing and reclocking at input unit in order to re-construct the signal for consistent quality. Besides, with Transwan advanced fiber technology, VSDI can easily pass pathological pattern to prove its complete transmission.

Features

1. 1channel video and audio transmission of digital video signal over optic fiber

2. Handles pathological pattern

3. Automatic cable equalization to ensure signal integrity

4. Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s

5. Support signal type: 270Mbit/s to 3Gbit/s according to SMPTE 424M, SMPTE 292M

and SMPTE 259M standards, DVB-ASI

6. Long transmission capability at least 10 km(6.2 miles) , up to 80 km

7. Terminal block power input for industrial application

8. Supports hot swapping and hot plugging

9. Simplex LC/PC single mode optical connection
