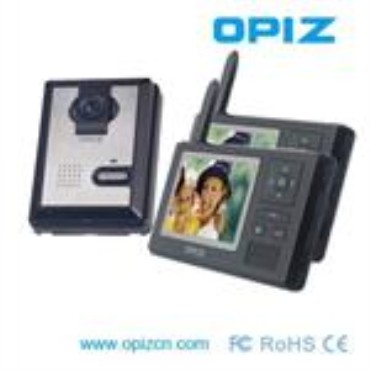

1/4-inch IR CMOS camera

3.5 inches TFT LCD screen

Wireless dual communication, monitoring and release door

Inner calling

Capturing image

1GB memory card (image storage)

Adjustable brightness, color, contrast and ring volume

Capable to support two outdoor cameras and four indoor monitors

Adjustable talking volume

Changeable chord melody (12 ringtones)

Specifications:

Housing material: ABS

2.4GHz ISM digital public frequency

Effective range would be 300m in free field

Support two outdoor and four indoor units

Working frequency range: 2402 to 2483.5MHz

Transmission power: 16 to 20dBm

Receiving sensitivity: -90dBm

Temperature: -10 to 70°C

Relative humidity range: 45 to 95% RH

Atmospheric pressure range: 86 to 108kPa

Working voltage: 300mA

Static currents: 20 to 30mA

68 standby hours

USB interface for battery charging

Installation: wall mounted or desktop

Outdoor station dimensions: 127 x 95 x 37mm

Indoor phone dimensions: 102 x 67 x 18mm

Net weight: 300g
