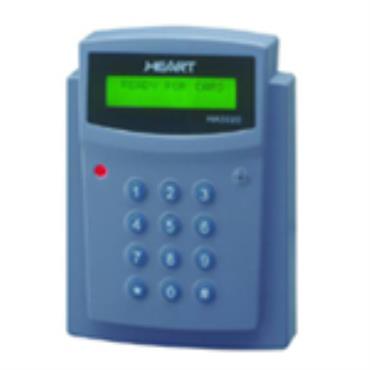

HA3020 is fully programmable stand-alone access control system that allows entry

using proximity technology, keypad or both (proximity card with 8 digit number + PIN),

for up to 5,000 users.

Characteristics

Proximity type reader,read range upto 7cm

Memory capacity store upto 5000 user records

Large LCD display , 16 character x 2 lines with

back light

Access mode selectable

1.reading proximity card

2.card data + personal password

3.keyin card data

Anti - duress function available

Arm or disarm connected security system

Patrol function available

Security function available

User card can be registered / deleted in batch mode

Authorize card to be removed once incorrect

password key - in five times consecutively

Alarm to be activated once incorrect password

key - in five times within four minutes

Activate alarm status either by force entry , tamper

switch , anti - duress , security function or door

opened off limit

Last ten history recoreds available

Audible key tone for easy operate

Strike , alarm and duress relay drive time

selectable ( 1 - 255 seconds )

Door left open time selectable ( 1 - 255 seconds )

Two - piece enclosure design the reader is patted

for weather and hazard proofing

A separate relay module design , high security

provided

With power saver function , the back light of LCD

turn off once there is no operation within three

minutes

The Specifications of HA3020 Proximity Access Reader

Model Number: HA3020

Reader Type: Proximity

Card Type: EM, HID, TI ISO/IEC15693, MIFARE ISO/IEC14443A (Optional)

Reader Range: Up to 7 cm with EM ISO chip card 125KHz

Display: 16 characters, 2 lines, LCD with backlight

Keypad: 12 keys (0-9, *, #)

LCD Indicator: Bicolor (green/red)

Memory Buffer: 5000 cardholders

Case Material: ABS (UL94V-0)

Working Voltage:DC 10-15 volt

Power Consumption:300mA max. @12VDC

Dimension (H x W x D) mm: 150 x 110 x 45

Dimension (H x W x D) in: 5.9 x 4.3 x 1.8

Weight: 380 g (13.5 oz.)

Operating Temperature: 0℃~50℃ / 32℉~122℉

Operating Humidity: 5% ~ 95% (relative humidity non-condensing)

Certifications: CE, FCC, IP34, RoHS
