Proximity Stand-Alone control System with built-in Relay NC/NO.

Read range upto 10cm

Memory capacity store upto 1,000 card holders

Characteristics

Proximity Stand-Alone control System with built-in Relay NC/NO

Proximity type reader, read range upto 10 cm

Memory capacity store upto 1,000 user cards

Antiduress function available

Access mode selectable

1. reading proximity card

2. card data + personal password or main password

3. key in card data

Force alarm function

Arm or disarm connected security system

Alarm activated when wrong password being input more then five times

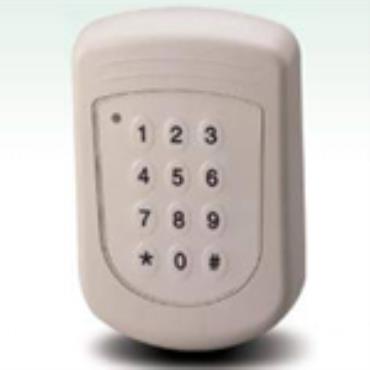

The specification of HA3018 all-in-one stand-alone reader

Model Number: HA3018

Reader Decoding Format: Proximity

Reader Range: Up to 10cm with EM compatible card 125KHz

Memory Buffer: 1000 cardholders

Keypad: 12 Key-Buttons

Case Material: ABS (UL 94V-0)

Dimension: 23 (H) X 75 (W) X 112 (D)mm

Weight: 250g

Working Voltage: DC 10-15 volt

Power Consumption: 300mA Max.@12VDC

Operating Temperature: 0℃ - 50℃

Operating Humidity: 30% ~ 95%
