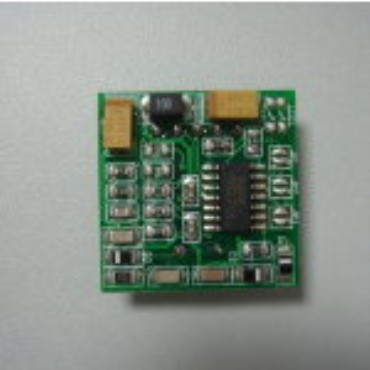

The RM125SA/SF is a proximity card reading module for transmitting radio frequency 125KHz ASK/FSK system. It is easily to be used to design the RFID products. Reading distant up to 70mm. the module operating voltage range is DC +3.0V to 5.5V. Output 21,26,39,41,44,48 bits data in Wiegand format or 85, 95,100, 115, 120 bits data in magnetic stripe ABA track II format which is most prevalent used in the industry, provide more feasibility to the users. A Bi-color LED enhances user feedback. The LED normal state is red when the proximity card ID is read and the ID code is transmitted to the host system, the LED turns green. The typical action time is 200ms.

Features:

Operating Voltage Range: DC +3.0V to 5.5V

Power Consumption: Average 23Ma; Peak 30mA@5VDC

Transmitting Radio Frequency: 125KHz

Reading Distance(External antenna): Up to 70mm(In noise-free environment)

Indicator: Bi-color LED (Green/ Red)

ASK Transponder Type(Option): EM or Casi Rusco 125KHz 64 bit standard R/O or compatible

FSK Transponder Type(Option): HID or XSF 125KHz standard R/O or compatible

ASK RFID Wiegand Output Format: EM 44/26 bits data or Casi Rusco 41/21 bits data

FSK RFID WIegand Output Format: HID 48/26 bits data or XSF 39/26 bits data

Operation Temperature:: 0℃ ~ 70℃ (Commercial)

Operating Humidity Range: 5 ~ 95 %(No condensation)

Module Weight: 5g MAX

Module Dimensions: 25.5(D) × 25(W) × 7(H) mm

OEM or ODM READER MODULE IS AVAILABLE UPON REQUEST
