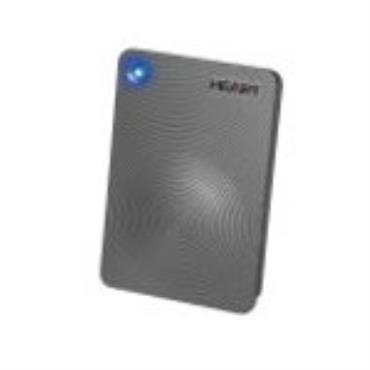

HR410 is a proximity sub-reader complying the 26 bits Wiegand format of the international standards. A three (green/red/blue) LED and a beeper offer feedback to users.

The specification of HR410 proximity access reader

Model Number: HR410

Card Type: EM,HID,MIFARE 14443A,(optional),TI (ISO15693)

Transmitting Frequency: 125KHz/13.56MHz

Reader Range: Up to 3~7cm(In noise-free environment)

Output Protocol: Wiegand

Indicator: Three LED(Green/Red/Blue)

Case Material: ABS

Working Voltage: DC +9.10V to 14V

Power Consumption: Average 50mA;Peak 150 mA @12VDC

Dimension(H x W x D)mm: 115 x 80 x 20

Weight: 135g MAX (8.8 oz. MAX)

Operating Temperature: 0℃~ 50℃

Operating Humidity: 5%~95%(relative humidity non-condensing)
