HB0312 Relay I/O Module for Access Control System
Heart Tech Enterprise Co., Ltd.
Region: Taiwan
Update: 2011/01/17
INQUIRY
Key Specifications

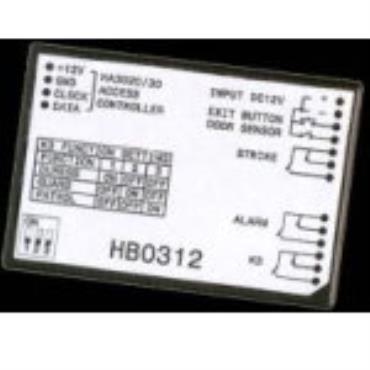

HB 0312 Relay I/O board
2DI/3DO (2DI-Door sensor,push button)
(3DO-Strike,alarm,-option one)
Model Name: HB0312
Input: 2 sets
Relay: 3 sets, 24V DC, 3A, NC/NO
Material: Epoxy Resin
Work Voltage: DC 10~15Volt
Power Consumption: 300mA
Dimension: 45 (H) X 64 (W) X 10 (D) mm
Weight: 3kg
Operating Temperature: 0℃~50℃
Operating Humidity: 5%~95% (no condensation)
