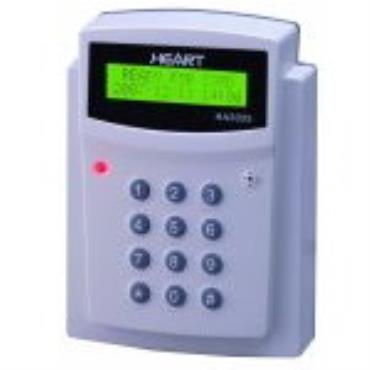

HA3035 is the reliable and cost-effective access control system with network
configuration for up to 320 readers using RS485 or TCP/IP, and with storage
capacity of 3,000 users and 3,500 transactions for each reader.
Characteristics
Proximity type reader,read range upto 10cm
3000 card holders/3500 transactions
Network configuration upto 99 devices or 320 devices
Antipass back
Access mode available
Door left open alarm function
Force entry alarm
Temporary suspend all function
Password time zone restraint
Ten access time zone restraint
Twelve months holiday restrant
Access mode selectable
1.reading proximity card
2.card data + personal password
3.keyin card data
Communication interface: RS232 - RS485 and TCP/IP available
Can be used as stand alone device without personal computer
connected
Eight groups personal password time zone programmable
Password time zone programmable if card data with password access
salected , for example : use card data in regular time , card data with
password in holiday
Two types alarm status available
- Force entry
- Door not close within a pre-definec time
Device model and version number can be displayed
Card number shown when access succeed
Up to 2 months battery back-up capacity for data storage during power failure
With power saver function , the back light of LED turn off once no there
is operation within 3 minutes
The acting time of electric strike , alarm function anti-duress and door
not closed alarm can be programmable from 1 to 255 seconds
The way to deactivate the alarm when door not close within a predefined time
Communication baud rate can be programmed via keypad
Four error message available
( all records are stored in controlled software)
1. Invalid card
2. Restricted Time
3. Time zone Unmatched
4. Code Unmatched
The Specifications of HA3035 Proximity Access Reader
Model Number: HA3035
Serial Port: RS232, RS485, TCP/IP (Optional)
Reader Type: Proximity
Card Type: EM, HID, TI ISO/IEC15693, MIFARE ISO/IEC14443A (optional)
Reader Range: Up to 10 cm with EM compatible card 125KHz
Display: 16 characters, 2 lines, LCD with backlight
Keypad: 12 keys (0-9, *, #)
LCD Indicator: Bicolor (green/red)
Memory Buffer: 3000 cardholders / 3500 transactions
Case Material: ABS (UL94V-0)
Working Voltage: DC 10-15 volt
Power Consumption: 300mA max. @12VDC
Dimension (H x W x D) mm: 150 x 110 x 45
Dimension (H x W x D) in.: 5.9 x 4.3 x 1.8
Weight: 380 g (13.5 oz.)
Operating Temperature: 0℃~50℃ (32℉~122℉)
Operating Humidity: 5% ~ 95% (relative humidity non-condensing)
Certifications: CE, FCC, IP34, RoHS
