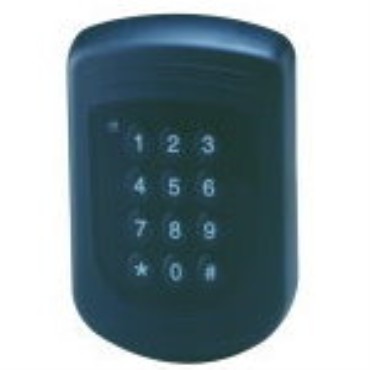

HA3028 is a simple and easy stand alone access controller which is available in 3 modes, (1) card reading, (2) card reading + PIN, (3) common password. Higher security is provided by separate controller and relay board.
Characteristics
Proximity type reader, read range upto 7cm
Reader is potted for water and dust proofing, makes it a popular choice for both indoor and outdoor installation
Two – piece enclosure design the reader is patted for weather and hazard proofing
Memory capacity store upto 1,000 user cards
Cost- defective solution for access and personnel management
? Access mode selectable
1. reading proximity card
2. card data + personal password or main password
3. keyin card data
Master code function
Main code function
Security password function
User card can be registered / deleted in single or batch mode (with consecutively number)
Alarm activated when wrong password being input more then five times
Force alarm function
Key beeper sound selectable
Drive time of electric lock and alarm relays programmable (1~99 seconds)
Time out function will be activated to reset the whole device when any function halt more then 25 seconds
Drive relay board separated from controller, module design, higher safety index
Anti-duress function available
Arm or disarm connected security system
The Specifications of HA3028 Promximity Access Reader
Model Number: HA3028
Card Type: EM, Casi Rusco 64 bit standard R/O or compatible, HID (optional)
Reader Decoding Format: 5, 8, 10, 13 digits / Casi Rusco fixed 12 digits / HID fixed 8 digits
Reader Range: Up to 7 cm (In noise-free environment)
Keypad: 12 keys (0-9, *, #)
Indicator: Bicolor LED (green/red)
Memory Buffer: 1000 cardholders
Case Material: ABS (UL94V-0)
Working Voltage: DC 10-15 volt
Power Consumption: 300mA max. @12VDC
Dimension (H x W x D) mm: 112 x 75 x 23
Dimension (H x W x D) in.: 4.4 x 2.9 x 0.9
Weight: 250g MAX (8.8 oz. MAX)
Operating Temperature: 0℃~70℃ (32℉~158℉)
Operating Humidity: 5% ~ 95% (relative humidity non-condensing)
Certifications: CE
