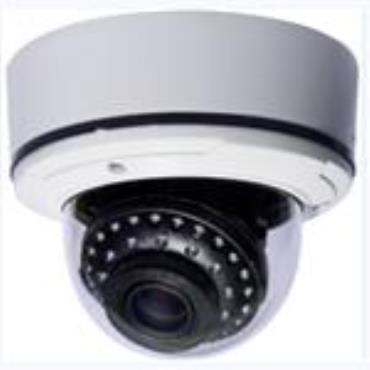

waterproof & vandalproof dome camera

1/3” sony EFFIO-V 700TVL high solution

With cable control OSD menu

With WDR function

2.8-12mm varifocal lens

35pcs ￠5 IR LEDs, 30M IR distance

Waterproof rate: IP68

Vandalproof rate: IK10

Specifications:

Image Sensor: 1/3 Sony Double Scan CCD+EFFIO-V CXD4141 DSP

Effective Pixel: PAL:976(H)×582(V)

NTSC:976(H)×494(V)

System: PAL/NTSC

WDR: Low/Middle/High

SYNC: Internal

Shutter: 1/50～1/10000s；

AGC: Auto AGC/AGC+Slow Shutter

S/N Ratio: More than 50dB（AGC OFF）

Video Out: 1.0Vp-p,75ohms

Resolution: 700TVL

Minimum Illumination: Color 0.1Lux(F1.2,50IRE,AGC ON)，B/W :0.001Lux(F1.2,50IRE,AGC ON)

Day/Night: Day/Auto/Night

Day/Night Switching time: 0～255

Lens: Manual/Auto

Privacy: 1～15 Zones

Motion Detect: 4 Zones

Video Output: BNC

White Balance: ATW/PUSH/User1/User 2/Manual/PUSH LOCK

Flip: Vertical/Horizontal/ Verital+Horizontal/Off

Title: yes

Title Position: Anywhere on the screen

NR: 0-6

OSD: CHINESE/ENGLISH /JAPANESE/SPANISH/RUSSIAN/GERMANY/FRENCH/PORTUGUREE

Contrast: 0-255

Sharpness: 0-15

Power: DC12V±10% （AC24V Optional）

Consumption: 2.0W

Operating

Temperature -100C～+500C

Operating Humidity: Less than 90%

Storage Temperature: -400C～+600C

Storage Humidity: 20～95%
