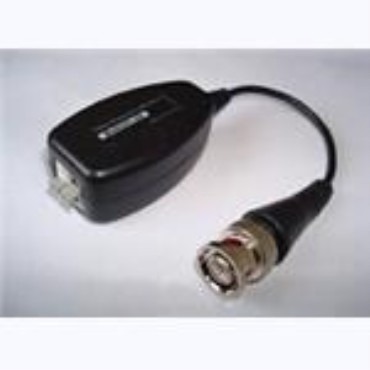

Channel passive video transceiver. Receiving and transmitting video signals over UTP cable without using

the power supply.

Model

SDY-205L

Spec

1CH Passive

Video

Frequency respons:DC-6Mhz Conmmon-mode/Differential-mode Rejection:15Khz 6Mhz 60dB typ

Audio/data

NO

Power

NO

Impedance

Coax,male BNC:75ΩUTP(Screwless)Terminal Block or UTP RJ45 Data Connector:100Ω

Wire type

One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m)

Surge suppression

-

Control

NO

UTP Port

Terminal Block

Dimensions(mm)

70x19x16mm

Weigth(g)

20g

Environment

Temperature:-10~+50℃ Humidity:0~95%
