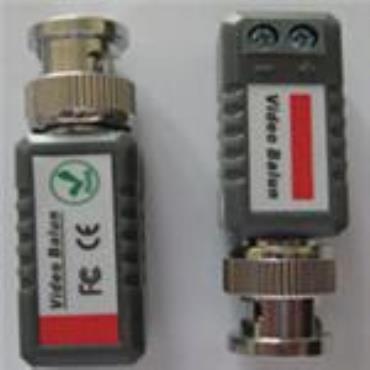

Channel passive video transceiver. Receiving and transmitting video signals over UTP cable without using the power supply.

Model

SDY-212E

Spec

1CH Passive

Video

Common-mode/Differential-mode Rejection: 15khz –6Mhz 60dB typ

Audio/data

NO

Power

NO

Impedance

Coax,male BNC:75ΩUTP(Screwless)Terminal Block or UTP RJ45 Data Connector:100Ω One Unshielded Twisted Pair

Wire type

24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m)

Control

NO

Dimensions(mm)

32x21x15mm

Weigth(g)

18g

Environment Environment

Temperature:-10~+50℃ Humidity:0~95%
