* Overview

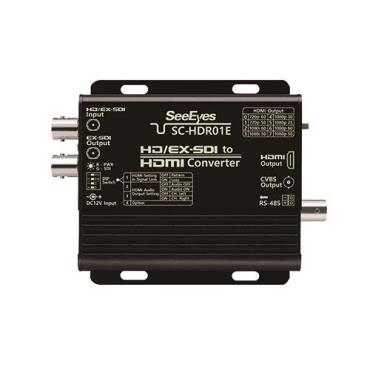

SC-HDR01E is a converter unit that converts EX-SDI signal to HDMI signal and also possible to output various signals such like HDMI, EX-SDI and CVBS for the EX-SDI 1.0/2.0 input signals. This product can be applied to various applications such as EX-SDI signal monitoring or external transmission. Especially, when connects to SC-HDT01E, HDMI image could be transmitted for long distance and RS-485 control data could be also transmitted simultaneously by coaxial cable.

* Features

・Convert EX-SDI 1.0/2.0 input into HDMI/CVBS signal

・Support various HDMI output resolution(~1080p60Hz)

- Output resolution adjustment function (built-in scaler)

・1 IN / 3 OUT distribution (HDMI x 1, SDI Loop Out x 1, CVBS x 1)

・Able to transmit HDMI signal up to 600m (EX-SDI 2.0) over RG-6 cable when connected with SC-HDT01E

・RS-485(Half Duplex) input port: If connected to SC-HDT01E, it is able to transmit RS-485 control data simultaneously over coax. cable - UTC function
