* Overview

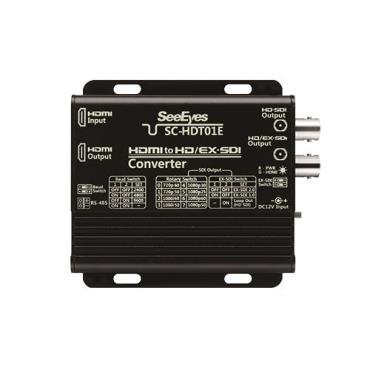

SC-HDT01E is a converter unit that converts HDMI signal to HD-SDI and EX-SDI signals. It can output various HD-SDI resolutions and EX-SDI 1.0/2.0, and supports HDMI Through Out function. HD-SDI signal and EX-SDI signal can be output simultaneously and it can be applied to various field applications. Especially, when connects to SC-HDR01E, HDMI image could be transmitted for long distance and RS-485 control data could be also transmitted simultaneously by coaxial cable.

* Features

・Convert HDMI input into HD-SDI, EX-SDI signal

- Able to output HD-SDI, EX-SDI simultaneously

・Support various HDMI input resolution(~1080p60Hz)

- HD-SDI, EX-SDI ( ~1080p60Hz)

・HDMI Through Out

・1 IN / 3 OUT distribution (HDMI x 1, HD-SDI x 1, EX-SDI x 1)

・HD-SDI output resolution & EX-SDI 1.0/2.0 selection switch

・Able to transmit Max. 200m for HD-SDI(1.5G) & 600m for EX-SDI 2.0 by RG-6 cable

・RS-485(Half Duplex) input port: If connected to SC-HDR01E, it is able to transmit RS-485 control data simultaneously over coax. cable - UTC function
