* Overview

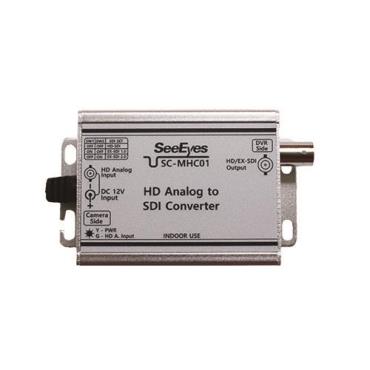

SC-MHC01 is a multi-converter which receives HD Analog(~2MP) signal and converts it to the standard HD-SDI or EX-SDI(1.0/2.0) signal. A user can check a HD Analog camera(~2MP) with a HD-SDI test monitor or HD-SDI test equipment, which does not support HD Analog. In addition, it is available to make hybrid system of HD Analog camera with SDI DVR.

* Features

• Convert AHD/ TVI/ CVI (~2MP) signal to HD-SDI or EX-SDI(1.0 / 2.0)

• Output signal format is selectable by the DIP switch on the side (HD-SDI, EX-SDI 1.0 or EX-SDI 2.0)

• Signal resolution: 1080p 25/ 30Hz, 720p 25/ 30/ 60Hz

• Enable operating powered (DC12V) by SeeEyes test monitors without any separate adapter

• Enable checking an AHD/ TVI/ CVI (~2MP) camera with your existing HD-SDI test monitor or DVR (e.g.SC-MFM07HD)

• Available to make a hybrid system of AHD/ TVI/ CVI cameras with SDI DVR
