* Overview

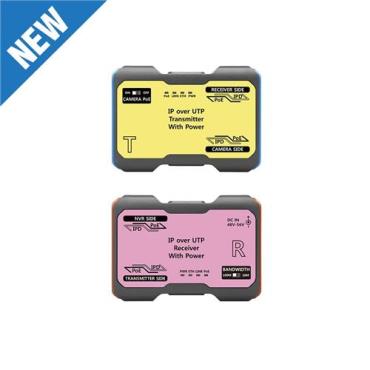

SC-IPC07PU, which consists of SC-IPT07PU(1CH Transmitter) and SC-IPR07PU(1CH Receiver), transmits Ethernet data and power over one UTP cable. Its built-in power supply function (IEEE802.3at) operates a transmitter(SC-IPT07PU) and a PoE camera from the receiver(SC-IPR07PU) side without separate power lines and it resolves short-distance typical network system by transmitting Ethernet data in a long distance. Our solution is very cost-effective by minimizing construction period and cost as you can replace your old UTP system to network by keeping your UTP cable.

* Features

• Transmit ''Ethernet data + Power(PoE)'' over one UTP cable

• Enable supplying power(PoE) to a PoE camera (~30W)

• Ethernet data transmission up to 800m over Cat.5e (based on 10Mbps)

• Built-in 10/100Mbps bandwidth switch(extension switch) for transmission bandwidth optimization by distance

- 100Mbps : Max. 500m (Cat.5e) / 10Mbbps : Max. 800m (Cat.5e)

• PoE ON/OFF switch mounted on the transmitter (SC-IPT07PU)

• Cost-effective solution by keeping existing UTP cable

• Reduce the construction cost and period with no need of any separate power lines

• Auto diagnosis function for stable power supply

• Support MULTICAST

• Compact size for easy installation (Wall mount brackets provided)

• Built-in surge protection circuit
