* Overview

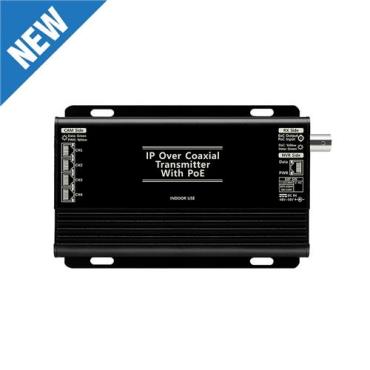

SC-IPT1204P (4CH Hybrid Ethernet Data Transmitter) transmits Ethernet data from four network cameras over only one coaxial cable used with a receiver such as SC-IPR07P or SC-IPR0708H. This item improves short-distance typical network systems by extending transmission distance up to 500m and its built-in 4port PoE Hub enables supplying PoE to each network(PoE) camera connected to SC-IPT1204P without separate power lines.

* Features

• Transmit Ethernet data of 4 cameras over one coaxial cable with built-in 4port PoE Hub

• Enable supplying power(PoE) to four PoE cameras (~30W)

• Long-distance Ethernet data transmission used with either SC-IPR07P or SC-IPR0708H

- 100Mbps: Max. 500m (RG-6), Max. 300m (RG-59)

※ The receiver''s bandwidth switch must be set in 100Mbps mode

• Max. 8 cameras transmission over one coaxial cable by daisy-chain connection

(2pcs of SC-IPT1204P and 1pc of SC-IPR07P connection via extra NVR(RJ-45) port provided)

• Max. transmission bandwidth (TCP rate): 100Mbps (Full Duplex)

• Built-in 10/100Mbps bandwidth switch of SC-IPT1204P for transmission distance extension between cameras and SC-IPT1204P

- 100Mbps: Max. 100m (Cat.5e)

- 10Mbps: Max. 250m (Cat.5e)

• Enable receiving operating power from the receiver side (PoC) or by a separate adapter

• Cost-effective solution by keeping existing coaxial cable

• Easy installation by wall mount holes and bracket provided

• Built-in surge protection circuit
