* Overview

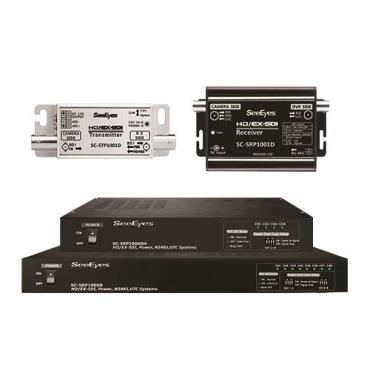

SC-SCP1001D/4DH/8D is SDI long distance transmission units transmit SDI signal, power and RS-485 control data over one, single Coax. cable. The transmission distance is able to be extended by using an unique repeater (SC-HLR01D). This products are useful and convenient in terms of installation and maintenance based on transmission SDI signal, power and data by one, single Coax. cable.

* Features

• SDI + Power + Control data (RS-485 one way, UTC) transmission over 1 single Coax. cable

• HD-SDI, EX-SDI1.0/2.0/2.1 input

• Long distance transmission for EX-SDI1.0/2.0/2.1

- EX-SDI2.0 basis, Max. 600m (by RG-6)

• Supply power to SDI camera (10W/DC12V)

• Self-diagnosis feature for safe power transmission

• Transmission distance can be extended by using dedicated repeater (SC-HLR01D)

• Cost-effective & Easy installation solution (30~50% cost saving)

• No need of high-priced optical or HDMI cables

• Built-in surge protection circuit
