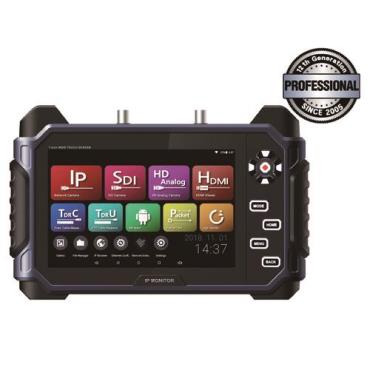

Professional IP Test Monitor, SC-IPM07PRO

* Introduction

SC-IPM07PRO is a tester that enables outdoor and indoor CCTV installation/construction/maintenance, and can monitors all types of CCTV cameras such as analog, digital, IP through high-resolution LCD. It also provides COAX control function for SDI and HD-Analog, LAN PORT for IP camera connection and SFP PORT for switcher and router. With large built-in battery for long-term portable use, it supports DC12V output and PoC, PoE to supply camera power. For easy operation, touch panel is applied and various applications are supported / able to be added in Android operating system. Also, this professional CCTV test monitor ensures durability by applying tempered glass and PCABS hard case.

* Features

• IPS 7inch WUXGA TFT-LCD Panel applied(LED Back Light)

- 7inch WUXGA Wide touch screen applied

- Optical bonding applied for outdoor environment

- Anti-finger coating applied for touch screen

• Power supply to PoE(IP Camera Mode), PoC(SDI Mode - option) and cameras below DC12V / 1A (exclusive harness provided)

• Various input and functions

1. IP camera viewer, address scan, address setting, ping test (Protocol : ONVIF, RTSP, MJPEG, Custom Protocol)

2. HD/3G-SDI, EX-SDI 1.0/2.0/TDM viewer, recording, snapshot

3. HDMI input viewer, recording, snapshot

4. TVI/CVI/AHD/CVBS viewer, recording, snapshot (~8M)

• RS-485 communication, UTC (Analog & HD)/UCC (EX/HD-SDI) communication

• UTP, Coaxial cable tester – distance, cable map, open/short status

- Network cable tester / PoE voltage check / Network TDR / Network packet analyzer / Coaxial TDR

• EX-SDI 1.0/2.0/TDM, HD/3G-SDI Signal Level Meter, Focus Meter, CRC Checker

• TVI/CVI/AHD/CVBS Input Video Level Meter & Focus Meter

• User-optimized ergonomic design

• WIFI wireless network

• Application update available by network

• Various applications based on Android OS

• Large built-in battery with 8 hours of continuous use

* Youtube Link : https://youtu.be/kYQ1EzGirIk
