AHD(~4MP)/TVI(~2MP)/CVI(~2MP)/CVBS Multi-format UTP Active Type Reciever (Power+Data overlap), SC-MUTP0801E

* Introduction

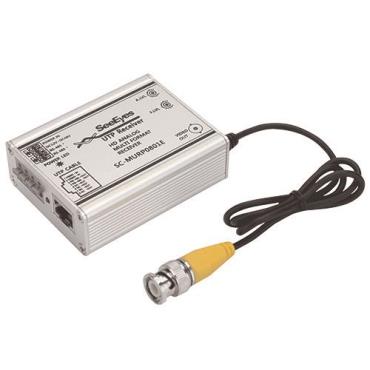

SC-MURP0801E is a 1CH Multi-format Active Type of UTP Receiver which supports AHD, TVI, CVI and CVBS. For easy installation, the harness cables are basically applied as well as it is available to transmit power and control data over one UTP cable with no need of adding power cable.

* Features

• Support multi-format HD Analog signals

• Active type 1CH receiver with high noise remove function

• Transmit video signal Max. 700m (AHD 2M), Max. 300m (TVI 2M), Max. 300m (CVI 2M), Max. 700m (CVBS) over CAT.5e UTP cable

• Able to select the optimum video by adjusting A.LEVEL/F.LEVEL GAIN

• Minimize the effects of NOISE on cable

• DC 12V output for transmitter(SC-MUTP0801E) on camera side (Max. 12W)

• Support standard CVBS signal (NTSC, PAL)

• Built-in surge protection circuit
