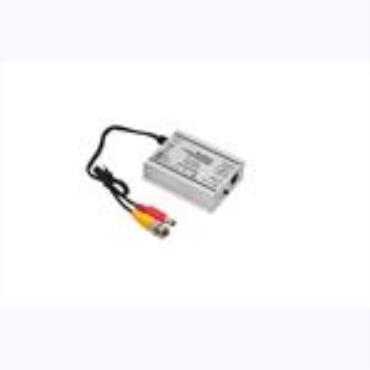

AHD(~4MP)/TVI(~2MP)/CVI(~2MP)/CVBS Multi-format UTP Active Type Transmitter (Power+Data overlap), SC-MUTP0801E

* Introduction

SC-MUTP0801E is a 1CH Multiformat Active type of UTP transmitter which supports various signals such as AHD, TVI, CVI and CVBS. For easy installation, the harness cables are basically applied as well asit is available to transmit power and control data over one UTP cable with no need of re-cabling.

* Features

• Support multi-format HD Analog signals

• Transmit video signal Max. 700m (AHD 2M), Max. 300m (TVI 2M), Max. 300m (CVI 2M), Max. 700m (CVBS) over CAT.5e UTP cable

• Active type 1CH transmitter with high noise remove function

• Minimize the effects of NOISE on cable

• DC 12V output for camera power supply (Max. 12W)

• Support standard CVBS signal (NTSC, PAL)

• Built-in surge protection circuit
