[Composition]

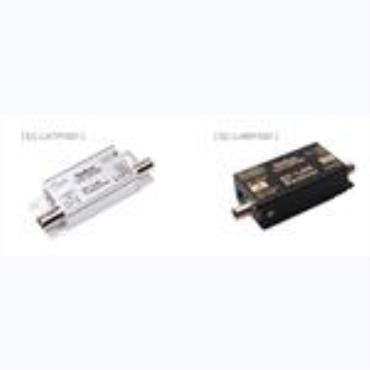

SC-LHTP1001 [Tx] + SC-LHRP1001 [Rx]

[Specifications]

*HD-SDI transmission up to 500m over RG-6 [Recommended distance :400m] / 400m over RG-59 [Full HD:1.5G]

-More than twice further transmission available with high-resolution digital system

*HD-SDI + Power over only one coaxial cable [No need of power cabling]

*Power supply to Mega pixel camera [10W/DC12V]

*Self-diagnosis feature for safe power transmission

*Max.400m additional distance extension available by using our repeater [SC-HLR01P]

*Supported resolution: 720p 24/25/30/50/60, 1080i 50/60/, 1080p 24/25/30
