HD/EX-SDI Signal + Power + Data Repeater over Single Coax. (200m), SC-HLR01D

* Introduction

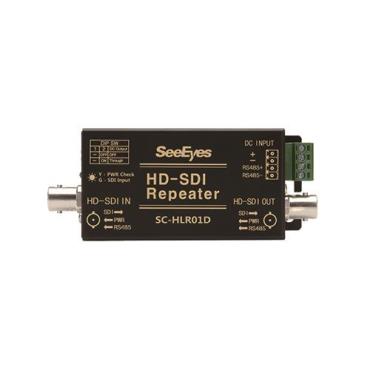

SC-HLR01D is an HD-SDI repeater for extending the transmission distance of HD-SDI signal. This product not only extend HD-SDI signal transmission distance but also provide power to operate the camera, repeater and transmitter and control data (RS-485) over single coaxial cable. It is a cost-effective and easy solution for maintaining HD-SDI site.

* Features

• Extend signal distance of HD-SDI, EX-SDI

• HD-SDI + Power transmission over one coax. cable

• Multiple connection of Repeater for long distance transmission

• Extend HD-SDI signal up to 200m (Full HD: 1.5G) /

100m (Full HD: 3G) / 400m (EX-SDI 1.0) over RG-6 cable

※ Extend additional distance by EX-LINK compliant

• RS-485 communication (simplex)

• Installation improvement : cost saving (30~50%)

• Self-diagnosis for safe power transmission

• Compact and light-weight aluminum case

• Built-in surge protection circuit
