1CH Network + PoE over Coax. Long-distance Transmission, SC-IPC07P

* Introduction

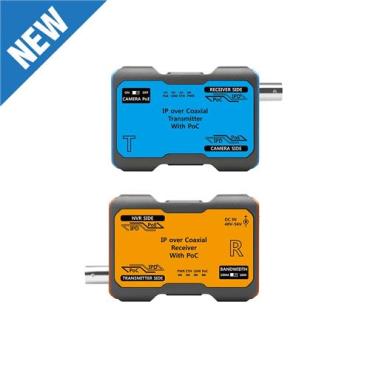

SC-IPC07P is a 1CH EoC (Ethernet over Coax.) transmission unit which consists of SC-IPT07P (transmitter) and SC-IPR07P (receiver). By using existing coaxial cable, this product transmits power of transmitter and IP camera over 1 coaxial cable, and receives IP camera data and transmit it to NVR. This enables to shorten construction period and reduce installation cost.

* Features

• Transmit power and Network Data over one coaxial cable

• Long distance Network Data transmission (RG-6)

- 100Mbps : Max. 600m

- 10Mbps : Max. 1km

• Built-in 10/100Mbps switch for optimizing transmission bandwidth by distance

• Auto diagnosis function for stable power supply

• PoE ON/OFF Switch mounted on the transmitter

• Cost-effective solution by using existing coaxial cable line

• Lower installation cost and reduce construction period by eliminating the need to lay power lines with PoC function

• Compact size for easy handling (bracket for fixing provided)

• MULTICAST supported

• Built-in surge protection circuit
