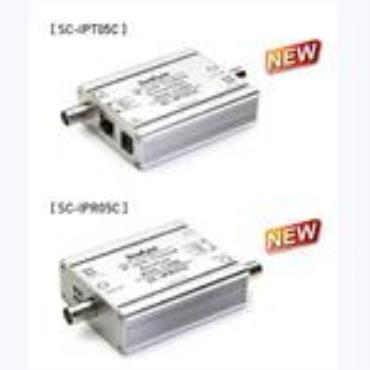

SC-IPC05C, Ethernet over COAX Transmission system can record not only high resolution Video via Megapixel IP system but also the monitor in real time with CVBS Video. As it is possible to send the Ethernet & CVBS up to 600meter with RG-6, it can be used to overcome the distance limitation of UTP cable which transmits only under 100m. Also the existing coaxial cable is reusable when installing new IP camera. It is a cost-effective and easy installation solution.

* Features

• Network Data & CVBS over coaxial cable transmitter simultaneously

• Possible to use both Analog camera and IP camera (Hybrid)

• Transmission distance : Max. 500m (RG-6/U)

Max. 350m (RG-59/U)

• Plus 200m over Cat.5 UTP cable from Camera to a transmitter, from a receiver to Network device

• TCP Rate

Up Link (Rx →Camera) : 3Mbps

Down Link (Camera →Rx) : 36Mbps

• Support for Auto MDI/MDIX Function

• Low infrastructure cost with easy maintenance

- Applications

• When you want to install an IP Camera or Mega Pixel Camera

• When you replace the existing camera with IP camera in the place where coaxial cables are already installed.

• When the IP camera is installed over 100m from the network device

• When you want to transmit data between IP equipment such as PC or other network devices​
