* Overview

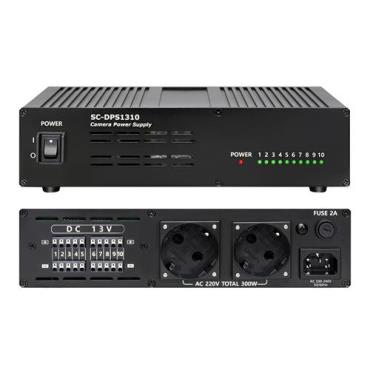

SC-DPS1310 is a 10 PORT CCTV power supply unit that can supply DC power to DC12V camera and AC power to DVR and monitor. Supplying stable power by sequential power supply method when camera power is supplied, and based on built-in line diagnostic function, only the corresponding port can be cut off the power when a line abnormality (short, over-current) occurs.

* Features

・Supply power to 10 units of camera (DC12V) and recorder, monitor (100~240V)

・13V/0.5A power output per each port

・Stable power supply by sequential power supply method

・With built-in the line diagnostic function, only the corresponding port can be cut off the power when a line abnormality (short, overcurrent) occurs.

Ex) When port #2 occurs overcurrent, only port #2 is cut off the power and all other port can be worked in normal

・LED indicator per each port
