* Overview

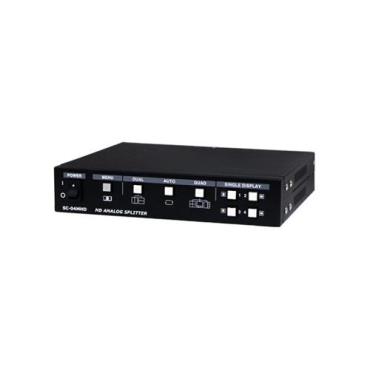

SC-04MHD, Digital Full HD Splitter, receives HD Analog (AHD, TVI, CVI) and/or CVBS video signals from Max. four cameras and displays them in various split modes and formats. In addition, it displays the video clearly in a Full HD monitor with 1920x1080p high resolution. With SeeEyes SC-04MHD, it is possible to amplify video signals to external devices such as DVRs via loop through output ports and also the remote control is available through RS-485 ports. It displays the date, time, the name of each channel, current status on the monitor as well as the channel loss.

* Features

• Multi-format quad screen splitter with 4 camera connection and real time display

• Display high-resolution video through high-speed image processing

• Various video input: AHD/TVI/CVI(~1080p), CVBS (NTSC/PAL)

• Various output resolutions (~1920x1080p)

• Various video output port (HDMI, 15Pin D-Sub, CVBS, Loop through output)

• Various split mode: 1, 2V, 2H, 4B, 4R, 4

• Auto sequence mode

• Alarm In / Out (4 In / 1 Out)

• Display date, time, name of each channel and current status

• RS-485 communication port for external device connection

• Various split mode: 1, 2V, 2H, 4, 4B, 4R

• Cropping function

• Auto sequence mode

• Display the date, time, the name of each channel, current status

• RS-485 communication port for external devices
