* Overview

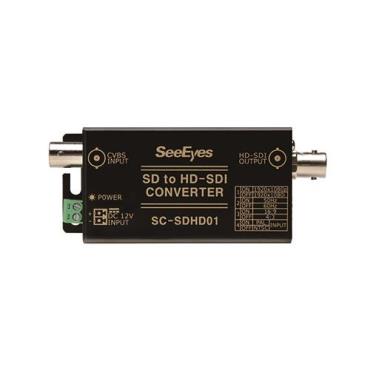

SC-SDHD01 converts analog signal to HD-SDI signal by up-scaling the resolution. It is possible to select the output ratio of the screen as ‘16:9’ or ‘4:3’ and to transmit the HD-SDI signal in a remote distance with equalization and re-clocking function.

* Features

• Converting 1 x Analog signals to 1 x HD-SDI signal by up-scaling

• Long distance transmission up to 150m(RG-6/U)

• Extending the transmission distance by using SeeEyes HD-SDI repeater. (SC-HLR01/02, SC-HLR01D)

• Possible to set the Video Output Resolution.

(1280x720 50p,60p/ 1920x1080 50i, 60i, 25p, 30p, 50p, 60p).

• Easy installation and various applications

• Possible to use HD-SDI DVR with Analog camera(Hybrid Solution)
