* Overview

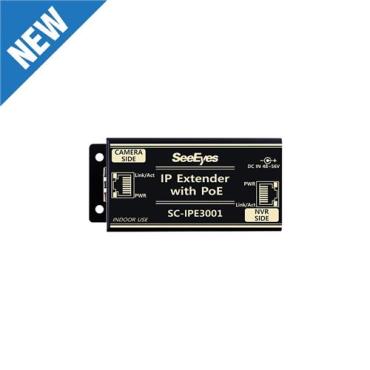

SC-IPE3001 is a 1CH UTP Ethernet Data + PoE Extender. With its built-in power supply function, this product supplies power (PoE IEEE802.3at) to camera. To compensate the short transmission distance of Network equipment (below 100m), SC-IPE3001 extends the transmission distance up to 100~250m by installing this product in the UTP cable section between camera and PoE Hub. Also, it is able to reduce construction costs by supplying PoE to IP camera.

* Features

• Extend transmission distance of Network Data (100 ~ 250m)

• Transmit Power + IP Data simultaneously over UTP Cable(CAT.5e)

• Input PoE or DC Adaptor Dual Power (DC Adapter power priority)

• Transmission bandwidth(MAX) : 10/100Mbps(Full Duplex)

• Support PoE input / output

• Extend transmission distance by setting bandwidth switch (100Mbps/10Mbps)

- 100Mbps : Max. 100m (CAT.5e) / 10Mbps : Max. 250m (CAT.5e)

• Max. power output : 48W(100Mbps, using DC 56V Adaptor)

• Built-in surge protection circuit
