* Overview

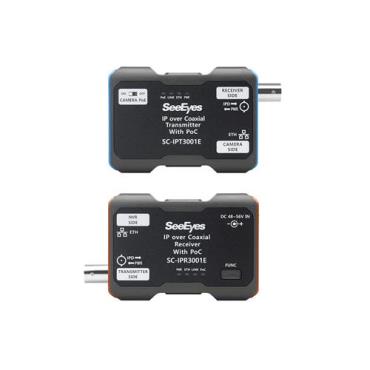

This product is a 1CH PoE coaxial long distance transmission devices, which consists of SC-IPT3001E(1CH Tx.) and SC-IPR3001E(1CH Rx.). It enables supplying power to the transmitter and an IP camera for their operation from the receiverʼs side and transmitting Ethernet data from the camera side to the NVR side.

* Features

• Transmit Power and network data over one coaxial cable

• Max. 2.8km over RG-6 (up to 20Mbps / data transmission only)

• Supply power to PoE IP Camera (Max.30W)

• Max. transmission bandwidth : 200Mbps(PHY Rate) / 75Mbps(TCP Rate)

• Auto diagnosis function for stable power supply

• PoE On/Off switch mounted on the transmitter for camera power supply

• 4/8CH Ethernet over Coax Receiver(SC-IPR1204EH, SC-IPR1208EH) with built-in switching HUB function

• Cost-effective solution by using existing coaxial cable line

• Lower installation cost and reduce construction period by eliminating the need to lay power lines with PoC function

• Built-in all channel Auto Pairing function for prevention of interference and safe transmission

- All channel auto encryption (128bit AES)

• Built-in surge protection circuit
