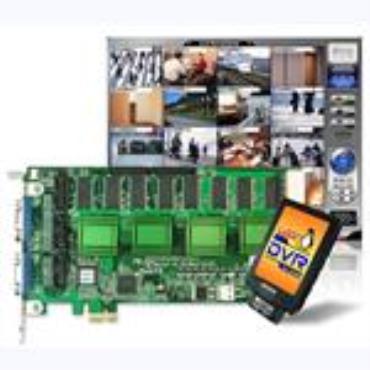

The Linux hybrid DVR kit is an all-in-one and simply plug-to-use hybrid DVR package. With H.264 H/W codec, it provides high performance surveillance with real-time monitoring and recording for each camera. WE-1648H (16-CH analog + optional 16-CH IP cameras, 480FPS@D1 recording, PCIe interface) can support up to 16+16 video input, 16+16 audio inputs, 16 digital inputs and 16 relay outputs, 1 RS-485 and 1 spot output providing intuitive user interface and management, high performance monitoring and recording, flexible alarm mechanism, and fully network remote access capabilities.

《Features》

● 16CH anglog video inputs, and optional 4/8/12/16CH IP video inputs

● 480/400FPS@D1 recording using H.264 H/W codec

● DVR software pre-installed in DOM module for rapid system deployment

● Enhanced Linux OS, well-protection against viruses and hackers

● Analog cameras hybrid with major brand IP/mega-pixel cameras and video servers

● 1920X1080 (16:9) and 1280X1024 (4:3) local display

● Smart resolution change of network video stream, provide remote clients with better-quality and low-latency videos under limited bandwidth

● Windows? remote client supports Internet Explorer? and Mozilla Firefox? browser

● 3G mobile phone access via iPhone?, iPad?, Android?, BlackBerry? and Windows? Mobile phone

● Optional RAID level 0, 1, 5, 6 to provide high-capacity storage and maximum redundant

● Optional IVS module for missing/unattended object detection, people counting, intrusion detection, etc
