1.Waterproof with sealed casing design.

2.Incorporate with optional security system to set or disable. A set of indicator light (Yellow) is provided for user to set.

3.Tamper switch . Alarm will be activated when is being tampered with force.

4.Dual-color LED indicator and Beep sound to indicate its current and proximity function.

5.polycarbonatefireproof material for casing ,white or dark-gray.

6.Proximity range 15cm(max).Power supply:12VDC+-10%. Dimensions:107L X 80W X 18H(mm)

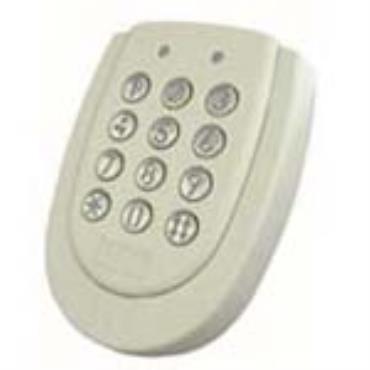

ST-120EA

1.Stand-alone proximity access control system

2.Two sets of RELAY for door open and alarm.

3.Five door opening methods: password door opening, proximity card door opening, proximity card plus

password opening, password or proximity card door opening, special system password door opening.

4.1,000cards capacity, 6-digit card number.

5.8 sets of door opening passwords which can be set by users.

6.Duress code installation. If being held as hostage specific password can be entered and help signal will be

dispatched immediately.

7.New addition/registration or deletion can be made on a specific card.

8.Single or batch registration can be done with reader. Cards could be distributed before registration.

9.Duration door closing time from 00-99 seconds.

10.Power consumption:150mA.
