Feature
Advanced RTOS; H.264 compression,Support D1;
Software upgrade via USB;
USB mouse control;
PTZ and network function;
Multi-language versions are selectable;

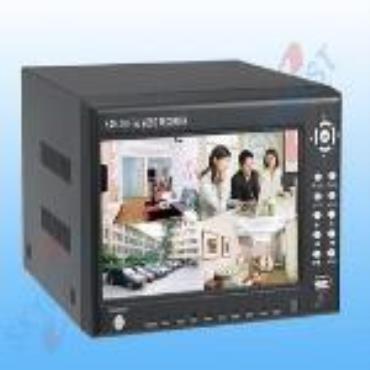

8004AP with 7 Inch Fixed TFT monitor (China Patent No. 200830253596.1);
Support mobile remote surveillance;
Support network center management system;
Applied in large surveillance area such as bank,supermarket, gas station, factory etc.
Specification
Model NO. SKY-8004AP
Operation System Embedded Linux
Compression H.264
Video Input/Output 4 channel BNC input/2 channel BNC output
Audio Input/Output 4 channel BNC input/1 channel BNC output
Display Frame Rate NTSC: 120 fps (4x30 fps)
PAL: 100 fps (4x25 fps)
Record Frame Rate NTSC: 120 fps (4x30 fps) CIF
PAL: 100 fps (4x25 fps) CIF
Record Mode Manual﹑Schedule﹑Motion Detection
Image Quality CIF/HD1/D1 selectable
Record Resolution NTSC:352x240(CIF) 704x240(HD1) 704x480(D1)
PAL:352x288(CIF) 704x288(HD1) 704x576(D1)
Playing Mode 1 channel or 4 channel
Searching Mode By time/By event/By channel
HDD Support 1TB SATA HDD
Alarm Input/Output 4 channel input/1 channel output
Internet IE/PPPoE/DDNS
Remote Control Yes
Mouse Control USB
USB Port USB 2.0
PTZ Control Yes
Language Support Simplified Chinese,English
Software Upgrade USB
7 Inch Fixed TFT monitor Yes
Mobile Surveillance Support Symbian s60 v3.0 , Mobile Pocket PC operation system
Remote Power Supply DC 12V remote power supply
Power Supply 19V/3.42A DC
Working Temperature -10℃~+50℃
Working Humidity 10%~90%
G.W/N.W 5.0KG/3.2KG
Meas(L*W*H) 200x130x230mm
