Advanced RTOS; H.264 compression;

Software upgrade via USB;

USB mouse control;

PTZ and network function;

Multi-language versions are selectable;

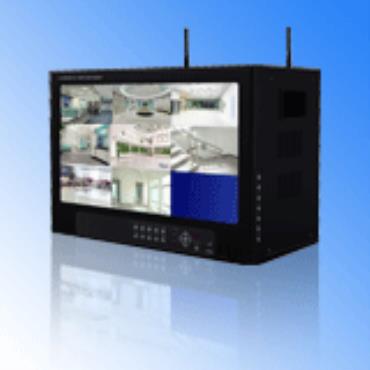

15.6 Inch fixed TFT monitor (China Patent No.200930169158.1);

Support 2 channel digital wireless camera;

Support mobile remote surveillance;

Support network center management system;

Applied in large surveillance area such as bank,supermarket, gas station, factory etc.

Specification

Model NO. W8008B

Operation System Embedded Linux

Compression H.264

Video Input/Output 8 channel BNC input/2 channel BNC output

Audio Input/Output 8 channel BNC input/1 channel BNC output

Display Frame Rate NTSC: 240 fps (8x30 fps)

PAL: 200 fps (8x25 fps) CIF

Record Frame Rate NTSC: 240 fps (8x30 fps) CIF

PAL: 200 fps (8x25 fps)

Record Mode Manual﹑Schedule﹑Motion Detection

Image Quality CIF

Record Resolution NTSC:352x240(CIF)

PAL:352x288(CIF)

Playing Mode 1 channel

Searching Mode By time/By event/By channel

HDD Support 1TB SATA HDD

Alarm Input/Output 8 channel input/1 channel output

Internet IE/PPPoE/DDNS

Remote Control Yes

Mouse Control USB

USB Port USB 2.0

PTZ Control Yes

Language Support Simplified Chinese,English

Fixed TFT Monitor 15.6 Inch Fixed TFT Monitor

Support digital wireless camera 2 channel

VGA Output Yes

Software Upgrade USB

Mobile Surveillance Support Symbian s60 v3.0 , Mobile Pocket PC operation system

Power Supply 19V/3.42A DC

Working Temperature -10℃ ~ +50℃

Working Humidity 10%~90%

G.W/N.W 6.8KG/5.7KG

Meas(L*W*H) 390 x 270 x 200mm
