Advanced RTOS;

H.264 compression ;

Video and audio real time recording;

Support MIC input ;

Support VGA output;

Multi-language versions are selectable ;

USB Mouse control; USB/IE/RS485 to upgrade software;

PTZ and network function; Perfect alarm and operation log are convenient for analyse and detection;

Watch-dog built-in; VFD time display synchronizes with DVR system time;

Applied in small surveillance area, such as house, small super market, gas station, villa, etc, and also applied in middle surveillance area.

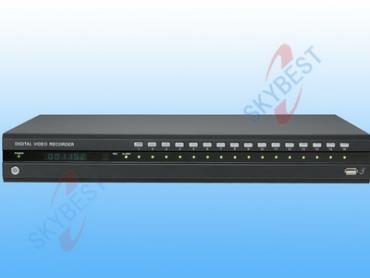

Model SKY-H016

Operation System Embedded RTOS

Compression H.264

Video Input 16 Channel

Video Output 1 Channel output

Audio Input No

MIC Input 1 Channel

Audio Output 1 Channel

Display Frame Rate NTSC:30 FPS/CH, PAL: 25 FPS/CH

Record Frame Rate NTSC:30 FPS/CH, PAL: 25 FPS/CH

Record Mode Manual, Schedule, Alarm, Motion Detection

Record Resolution 352 x 240 (NTSC) 352 x 288 (PAL)

Playing Mode 1CH, Multi-CH or 4CH (Dualplex)

Searching Mode By Time/ Event/ Channel

HDD >300G , SATA HDD x2

Alarm Input 16 Channel

Alarm Output 2 Channel output

Network IE/PPPoE/DDNS

Remote Control Yes

USB Mouse Control Yes

USB Port USB2.0

PTZ Control PELCOD, PELCOD5,PELCOD6,PELCOP1,PHILIPS,SAMSUNG,etc

Language Support Simplified Chinese ,English

VGA Display Yes

Software Upgrade USB/IE/ RS485

Mobile Surveillance Support Symbian s60 v3.0 , Mobile Pocket PC operation system

Power Supply 12V/ 5A DC

Working Temperature -10 ℃ - + 50 ℃

Working Humidity 10% - 90%

G.W /N.W 3.2KG / 2.2KG

Meas (L x W x H) 405 x 325 x 55mm
