Advanced RTOS; H.264 compression;

Software upgrade via USB;

USB mouse control;

PTZ and network function;

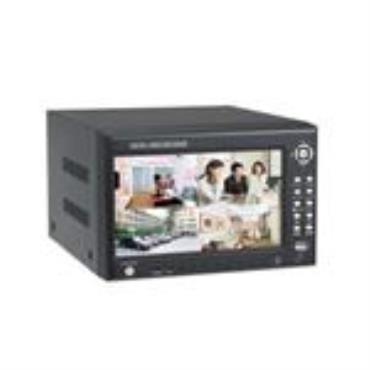

With fixed 7 Inch TFT monitor

Support mobile remote surveillance;

Support network center management system;

Specification

1-Operation System: Embedded Linux;

2-Video Compression: H. 264;

3-Video Input/Output: 4CH video input; 1CH BNC output, 1CH VGA output;

4-Audio Input/Output: 4CH video input/1CH output;

5-Record Frame Rate: NTSC: 30 fps (adjustable) PAL: 25fps (adjustable);

6-Record Mode: Manual/Schedule/Motion Detection;

7-Image Quality: CIF/HD1/D1 selectable;

8-Record Resolution: NTSC: 352x240(CIF) 704x240(HD1) 704x480(D1) PAL: 352x288(CIF) 704x288(HD1) 704x576(D1);

9-Playing Mode: 1CH or 4CH;

10-Searching Mode By time/By event/By channel;

11-HDD Support 1TB SATA HDD;

12-Alarm Input/Output: 4CH input/1CH output;

13-Internet IE/PPPoE/DDNS;

14-Remote Control: Yes;

15-Mouse Control USB USB Port USB 2.0;

16-PTZ Control: Yes;

17-Multiple Language: Support;

18-Software Upgrade: USB;

19-7 Inch Fixed TFT monitor Yes;

20-Mobile Surveillance: Support Symbian s60 v3.0, Google Android, Mobile Pocket PC operation, iPhone;

21-Remote Power Supply: DC 12V;

22-Power Supply: 12V/5A DC;

23-Working Humidity 10%~90%;
