Advanced RTOS;

H.264 compression ;

Video and audio real time recording;

Support MIC input ;

Support VGA output;

Multi-language versions are selectable ;

USB Mouse control; USB/IE/RS485 to upgrade software;

PTZ and network function; Perfect alarm and operation log are convenient for analyse and detection;

Watch-dog built-in; VFD time display synchronizes with DVR system time;

Applied in small surveillance area, such as house, small super market, gas station, villa, etc, and also applied in middle surveillance area.

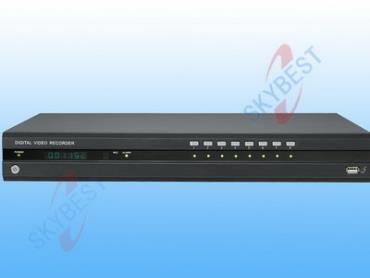

Model H8008

Operation System Embedded RTOS

Compression H.264

Video Input 8 Channel

Video Output 1 Channel output

Audio Input No

MIC Input 1 Channel

Audio Output 1 Channel

Display Frame Rate NTSC:30 FPS/CH, PAL: 25 FPS/CH

Record Frame Rate NTSC:30 FPS/CH, PAL: 25 FPS/CH

Record Mode Manual, Schedule, Alarm, Motion Detection

Record Resolution 352 x 240 (NTSC) 352 x 288 (PAL)

Playing Mode 1CH, Multi-CH or 4CH (Dualplex)

Searching Mode By Time/ Event/ Channel

HDD >300G , SATA HDD x2

Alarm Input 8 Channel

Alarm Output 2 Channel output

Network IE/PPPOE/DDNS

Remote Control Yes

USB Mouse Control Yes

Mobile Surveillance Support Symbian s60 v3.0 , Mobile Pocket PC operation system

USB Port USB2.0

PTZ Control PELCOD, PELCOD5,PELCOD6,PELCOP1,PHILIPS,SAMSUNG,etc

Language Support Simplified Chinese ,English

VGA Display Yes

Software Upgrade USB/IE/ RS485

Power Supply 12V/ 5A DC

Working Temperature -10 ℃ - + 50 ℃

Working Humidity 10% - 90%

G.W /N.W 3.0KG / 2.1KG

Meas (L x W x H) 405 x 325 x 55mm
