Advanced RTOS; H.264 compression,Support D1;

Software upgrade via USB;

USB mouse control;

PTZ and network function;

Multi-language versions are selectable;

8008T 7 Inch Fixed TFT monitor (China Patent No. 200830253596.1);

Support mobile remote surveillance;

Support 2 channel digital wireless camera;

Support network center management system;

Applied in large surveillance area such as bank,supermarket, gas station, factory etc.

Specification

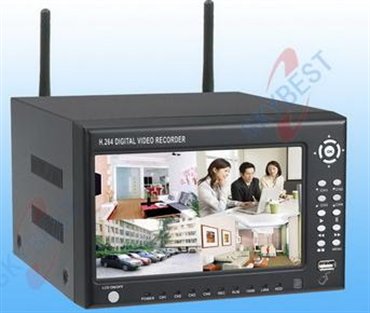

Model NO. SKY-W8004AP

Operation System Embedded Linux

Compression H.264

Video Input/Output 4 channel BNC input/2 channel BNC output

Audio Input/Output 4 channel BNC input/1 channel BNC output

Display Frame Rate NTSC: 120 fps (4x30 fps)

PAL: 100 fps (4x25 fps)

Record Frame Rate NTSC: 120 fps (4x30 fps) CIF

PAL: 100 fps (4x25 fps) CIF

Record Mode Manual﹑Schedule﹑Motion Detection

Image Quality CIF/HD1/D1 selectable

Record Resolution NTSC:352x240(CIF) 704x240(HD1) 704x480(D1)

PAL:352x288(CIF) 704x288(HD1) 704x576(D1)

Playing Mode 1 channel or 4 channel

Searching Mode By time/By event/By channel

HDD Support 1TB SATA HDD

Alarm Input/Output 4 channel input/1 channel output

Internet IE/PPPoE/DDNS

Remote Control Yes

Mouse Control USB

USB Port USB 2.0

PTZ Control Yes

Language Support Simplified Chinese,English

Software Upgrade USB

7 Inch Fixed TFT monitor Yes

Digital Wireless Camera 2 channel

Mobile Surveillance Support Symbian s60 v3.0 , Mobile Pocket PC operation system

Remote Power Supply DC 12V remote power supply

Power Supply 19V/3.42A DC

Working Temperature -10℃ ~ +50℃

Working Humidity 10%~90%

G.W/N.W 5.0KG/3.2KG

Meas(L*W*H) 200x130x230mm
