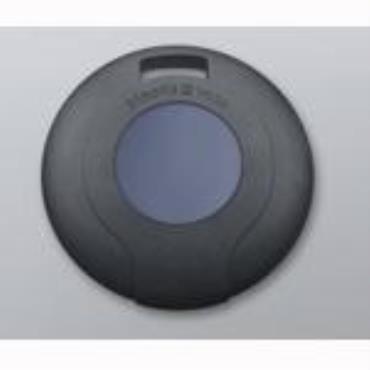

The transponder is used for identification purposes in the System 3060 in order to operate digital locking cylinders, SmartHandles and SmartRelais.

Housing made from black plastic (polyamide)
Dimensions: 42 x 13.7 mm
Protection category: IP 65, with bonded housing: IP 66
Typical reading range:
- up to 40 cm to a locking cylinder/SmartHandle,
- up to 120 cm to a SmartRelay
Battery type: 1 x CR2032 3V lithium
Battery life:
- G1: up to 1 million actuations or up to ten years on stand-by
- G2: up to 400,000 actuations or up to ten years on stand-by
Temperature range: -20 °C to +60 °C
Environment class: III
Number of locks that can be managed per transponder:
- G1: up to 48,000
- G2: up to 304,000
Configurable validity (activation / deactivation):
- G1: up to six months in advance
- G2: more than ten years
Storage of data records:
- G1: 3 independent locking systems
- G2: 3 G1 and 4 G2 locking systems
Physical access list with up to 1,000 locks can be stored (G2 version only)
