* 0.5 Lux Sensitivity

* Ultra Wide Dynamic Range: 120 dB

* Automatic color/mono switchover

* Easy OSD camera parameter setup

* Motion detection

* Twisted Pair video Output

* Noise Reduction (DNR)

* Back-Focus Wizard

* RS485 Remote Setup

* Dual Video standard PAL/NTSC

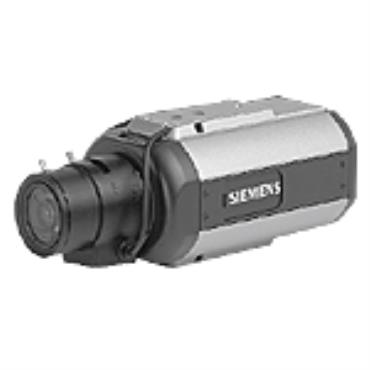

CCWC1345 is a 500 TVL high resolution color camera using the latest CMOS Image sensor and 32 Bit DPS (Digital Pixel System, PIXIM D2500 *) techniques to provide crisp, aperture corrected images for surveillance applications requiring detailed images even under extreme difficult illumination conditions.

High Resolution Wide Dynamic

The latest 32 Bit DPS (Digital Pixel System*) technology enables the ultra wide dynamic video range up to 120 dB, providing video-pictures without over- or underexposed areas.

Twisted Pair video out

Besides the conventional BNC video output, the integrated twisted pair video output enables the transmission of the video signal via simple twisted pair cabling such as telephone cable over a distance of up to 1200 m using a twisted pair receiver unit such as TP-RXMOD2 or equivalent.
