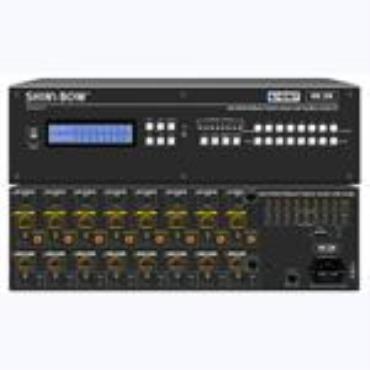

HDBaseT Receiver devices matrix switched to (8)x HDMI

with S/PDIF outputs and (8)x HDBaseT Transmitter with PoE

output to (8)x destinations.

2. Application HDBaseT Specification with PoE (optional), IR,

RS-232, Multi Audio Format and HD Video Signals over one

CATx (6/6a/7) category cable.

3. HDMI digital Video w/embedded HDCP, DVI format and

CEC/HDCP 2.2 compliant

4. Worldwide control EDID modes for HDMI full 4K2K HD Video

resolutions.

5. Wide range of HD resolutions from PC XGA to WUXGA

1920x1200 and HDTV/DTV HDMI resolutions 480i/480p,

576i/576p, 720p, 1080i/p & 4K2K.

6. Compatible with all HDMI source devices, PC monitors,

Plasma HD display, HDTV and audio receivers or audio

amplifiers.

7. Digital Video TMDS formats Resolution up to 4K2K with Deep

color 36-bit.

8. Digital Audio Support :

- Dolby TrueHD,

- Dolby Digital,

- Dolby Digital Plug/ex,

- DTS,

- DTS-HD,

- DTS-HD Master,

- DTS-EX

- PCM, PCM2, LPCM2..

9. Audio Input : Support Auxiliary Audio (Analog stereo

audio).

10. Audio Output : Support Digital audio ARC or Digital audio

S/PDIF ( from HDMI source or Auxiliary Audio )

11. Various User Interface controls:

●Windows based GUI control via RS232 port

●Front Panel push button

●IR wireless remote controller

●Ethernet Switch control

●Third party RS232 controller (via simple ASCII)

13. Support EDID modes :

a. Embedded EDID modes :

FSS/ H24-3D/ H24-3D-M/ H36-3D/ H36-3D-M/

4K2K-3D / DVI-D 1920x1200-60Hz

b. External modes : Learning mode.
